Shenzhen Speecon Electronics Co.,Ltd
|
High frequence NO BREAKS UPS
| Price: | 618.0~1200.0 USD |
| Payment Terms: | T/T,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

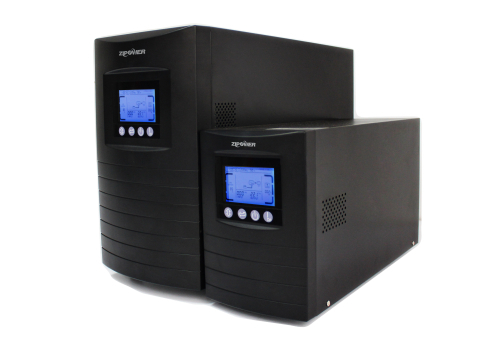

High frequency online ups
NO BREAKS
Used for Electronic Equipment with big LCD screen
Availes to work with generators
Uninterruptible Power Supply EX1K, EX2K, EX3K.
LCD digital display.
Back panel with sockets and terminal blocks.
Double conversion Online UPS, True pure sine wave form.
High efficiency and low power consumption.
Application:
EX Series 1KVA~3KVA High frequency online UPS power supply is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
| UPS Model | EX1K | T1K | EX2K | T2K | EX3K | T3K | |
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | ||||
| Input | Voltage | (115~300) VAC | |||||
| Frequency | 46~54Hz/56~64Hz (Adjustable via LCD panel) | ||||||
| Output | Voltage | 220/230/240 (1±1%) VAC (Adjustable via LCD panel) | |||||
| Frequency | 50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode:50Hz (1±0.2%) 60Hz AC Mode:Follow AC Mode(AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%) | ||||||
| Output Wave Form | Sine Wave | ||||||
| Back-up Time | Full Load | ≥5′ | ≥9′ | ≥5′ | |||
| Half Load | ≥14′ | ≥21′ | ≥15′ | ||||
| Battery Nominal DC Voltage | 36VDC | 96VDC | |||||
| Transfer Time | 0ms | ||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms | ||||||
| Communications | RS-232+Intelligent Slot | ||||||
| Environment | Temperature | 0C~40C | |||||
| Humidity | 15%~90% | ||||||
| Dimensions (W*D*H)mm | 400*145*220 | 460*192*348 | 460*392*348 | ||||
